In the world of information technology and networking, equipment is generally divided into two main categories: Active and Passive components. These two groups serve as the fundamental pillars of network design and implementation, working together to enable efficient data transmission and management. Below is a detailed explanation, including definitions, features, examples, and further insights:
Active
Active equipment refers to network components that require a power source (electricity) to operate and play a vital role in processing, amplifying, managing, and routing data. In addition to transmitting data, these devices typically have the capability to process information and make decisions.
Features of Active Equipment:
Power Requirement: These devices typically require direct or indirect power (e.g., Power over Ethernet – PoE).
Direct Data Interaction: They process or modify data signals to enhance transmission.
Advanced Functions: Include routing, switching, signal amplification, and data security.
Programmability: Most active equipment includes software that enables advanced configuration and management.
Examples of Active Network Equipment:
Router: Directs data packets between different networks.
Switch: Manages connections between devices within a local area network (LAN).
Modem: Connects the internal network to the internet.
Access Point: Provides wireless connectivity to network users.
Firewall: Protects the network against cyber threats and intrusions.
VoIP Equipment: Transmits voice data over the network.
Server: Delivers services and resources to network users.
Storage Devices (NAS/SAN): Store and manage data across the network.
Media Converters: Convert signals (e.g., from fiber optic to Ethernet).
Advantages:
Precise control over data.
Improved signal quality and data transmission.
Enhanced security through configurable equipment.
Ability to manage and monitor network performance.
Disadvantages:
Requires a power source.
Higher cost compared to passive equipment.
Requires technical knowledge for installation and configuration.
Passive
Passive Equipment
Passive equipment refers to those network components that do not require a power source and are primarily responsible for the physical transmission of data and signals. These devices play a key role in data transmission without processing or altering the information.
Features of Passive Equipment
No power required: These components operate without the need for electricity.
Simple functionality: They only transmit signals without any processing.
High durability: Due to their simple structure, they typically have a longer lifespan.
Infrastructure role: Essential for connecting active equipment in the network.
Examples of Passive Equipment
Network cables: Copper cables (e.g., Cat5e, Cat6) and fiber optic cables.
Connectors: Such as RJ-45 connectors used to link cables to devices.
Patch panels: Used for organizing network cables.

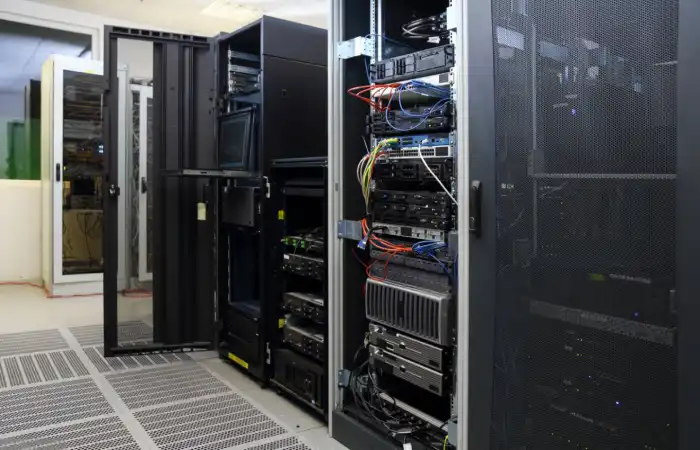

Network racks: Secure housing for networking equipment.
Cable ducts and trunking: For managing and concealing cables.
Network outlets and junction boxes.
Advantages of Passive Equipment
Lower cost compared to active components.
Minimal maintenance requirements.
Easy to install and deploy.
No power needed, so they’re not affected by power outages.
Disadvantages of Passive Equipment
Passive operation with no data processing capabilities.
Complete dependence on active components for effective functionality.
Potential single points of failure, where a fault may disrupt the entire network.
Main Differences Between Active and Passive Equipment
| Feature | Active Equipment | Passive Equipment |
|---|---|---|
| Power Requirement | Yes – requires electrical power to operate | No – does not require electrical power |
| Functionality | Processes, amplifies, routes, and manages data | Only transmits physical signals without processing |
| Role in Network | Controls and manages network traffic | Provides the physical infrastructure for data transmission |
| Complexity | More complex – usually includes software configuration | Simple design – no configuration needed |
| Cost | More expensive due to advanced features | Less expensive due to simplicity |
| Installation & Maintenance | Requires technical knowledge and ongoing maintenance | Easy to install and low maintenance |
| Examples | Router, Switch, Modem, Firewall, Access Point, Server, NAS/SAN | Network cables, Connectors, Patch Panels, Racks, Ducts, Wall Jacks |
| Durability | Depends on usage and power quality | Longer lifespan due to lack of electronic components |
Combined Use of Active and Passive Components in Networking
To build a reliable and efficient network, active and passive components must work in harmony as complementary parts.
Foundational Infrastructure:
Passive elements like network cables and connectors form the essential physical pathways for data transmission.Data Management and Processing:
Active devices such as switches, routers, and access points manage, route, and amplify data traffic across the network.Security and Communication:
Firewalls and servers, as active devices, ensure secure data access and provide services essential for user and system communication.
Final Insight:
Active and passive components are inseparable pillars of modern IT networks.
While passive equipment acts as the structural backbone for data flow, active equipment serves as the brain that processes, manages, and protects information. A proper combination of both ensures a stable, fast, and secure network for organizations and users alike.
